GSM Site samples

22.jpg (19010 bytes) 23.jpg (9836 bytes) 24.jpg (7172 bytes) 25.jpg (7698 bytes) 26.jpg (7356 bytes) 27.jpg (9728 bytes) 28.jpg (9503 bytes)

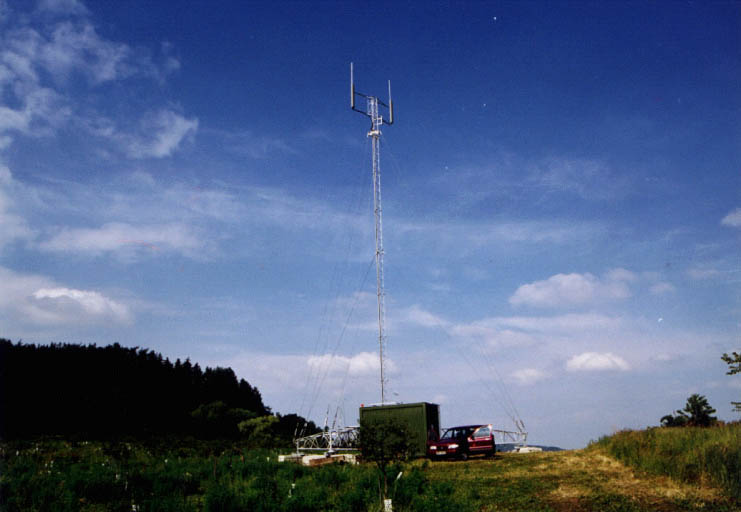

Mobile tower Excon 30m, GSM Site with generator, on the top of nountain in wet land, with closest electricity source miles away.



Mobile tower Excon 30m, diesel shelter provides electricity for 24 hours, 11 days for before first refueling.

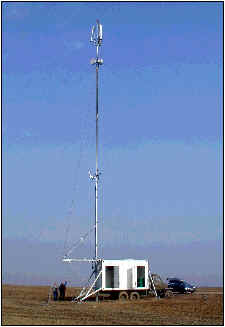

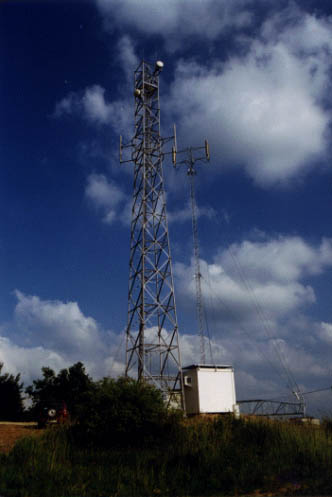

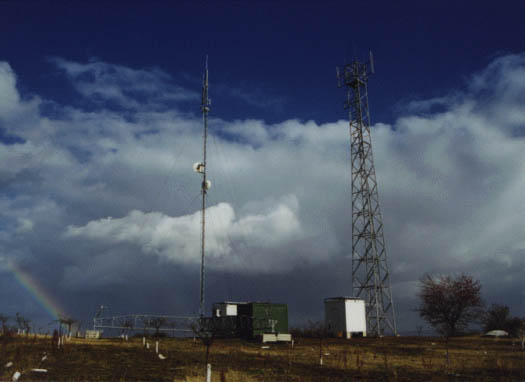

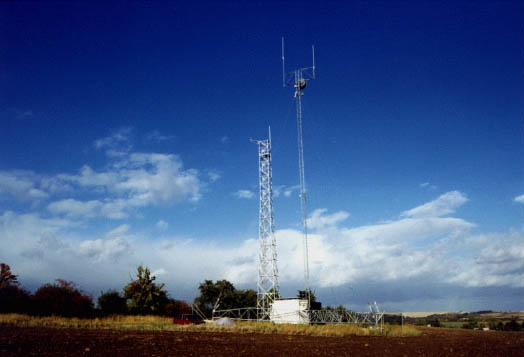

Mobile tower Excon 30m as temporary capacity prop to a standart tower, with GSM shelter fully on the air in 7 hours.



A mobile tower Excon 30m, with diesel generator 8kW and GSM shelter with BTS, deployment time 6 hours.

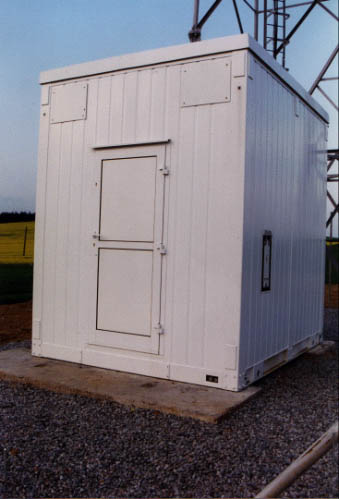

GSM Shelter 20 feets. 2,7m height, airconditioned, corrosion resistant, suitable for mobile and fix Site.

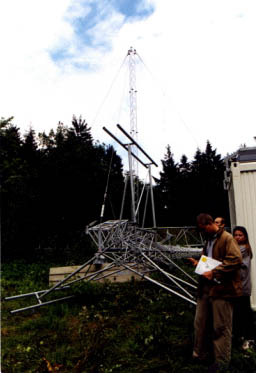

Mobile tower Excon 30m, detail of stabilisation system, tower accesible safely for assembly team.

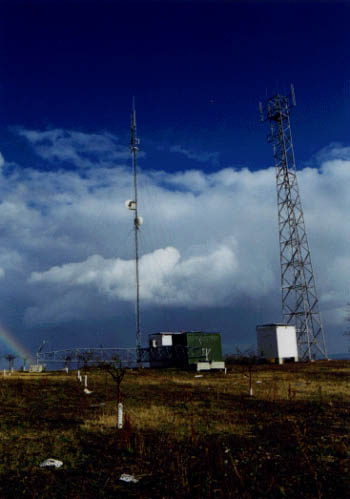

Mobile tower Excon 30m, GSM shelter with BTS and MW equipment.

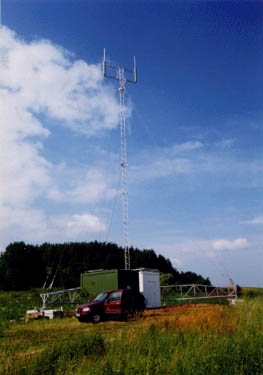

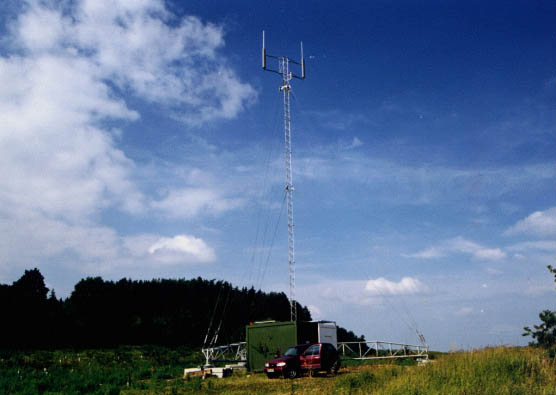

Mobile tower Excon 30m - selfcontained GSM Site with diesel generator, shelter and MW connection.

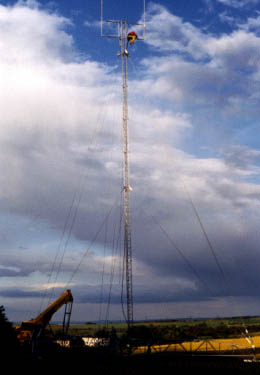

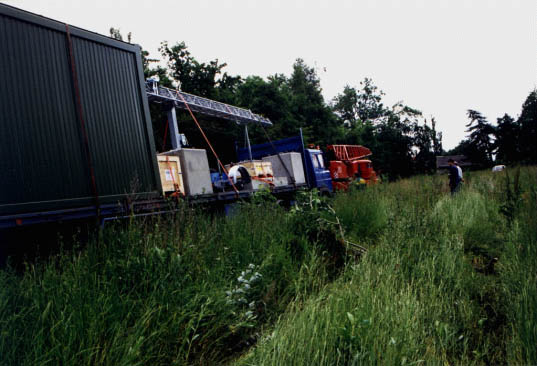

Mobile tower, diesel shelter, crane on the way to a Site for deployment.

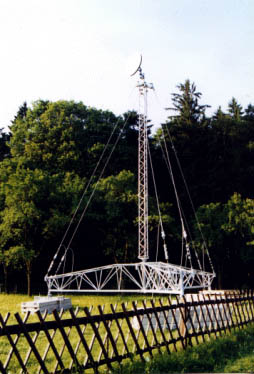

Mobile tower Excon 30m, steel legs give it a excelent stability on slopes, mud, forrest or on rocky ground.



Mobile tower Excon 30m, steel legs and special steel ropes guarantees a 4m2 antemma payload for a GSM Site even by wind 200km/hour.

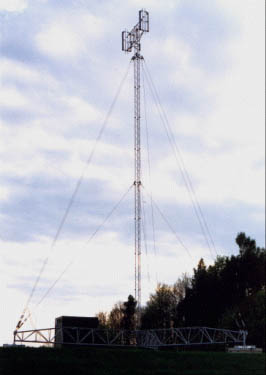

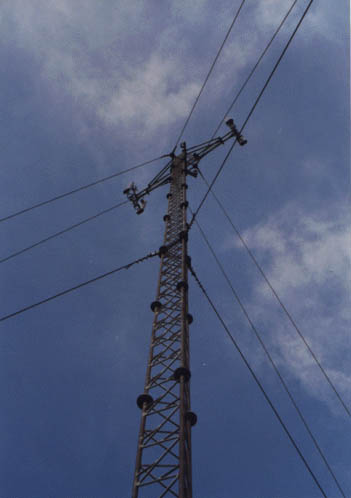

Mobile tower Excon 30m, steel rope guyding system allows extremly stable basis creating a force vector triangle.



Mobile tower Excon 30m, an example of a full GSM Site, time of construction 9 hours.



Mobile tower Excon 30m, green diesel shelter and white GSM shelter creates a high mobile solution.



Mobile tower Excon 30m, steel legs with bright concrete pannels are a support even in a muddy fields.

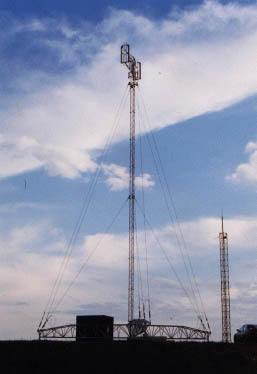

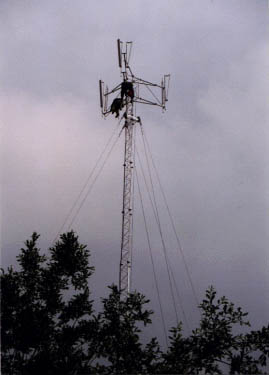

Mobile tower Excon 30m, double guyding provides a solid basis for 3 sector Sites with MW antennas even in the middle of forrests.



Mobile tower Excon 30m, a 24 hours solution in the mountains of North of Czech republic, with generator independent on any infrastructure.



Mobile tower Excon 30m, zinc hot-dipped high quality steel allows to leave the tower in worst terrains for years.

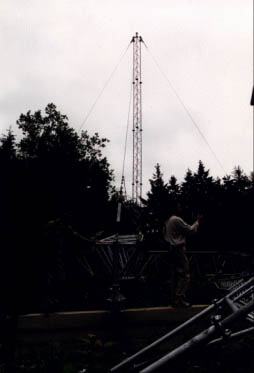

Mobile tower Excon 30m, steel legs with special steel ropes allows assembly in the middle of nowhere.

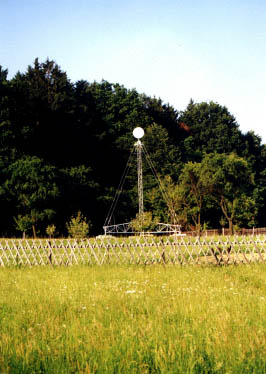

Mobile tower Excon 15m, a temporary Site for MW repeaters.

Mobile tower Excon 15m, lighter version for lower Sites of MW repeater, not damaging the countryside.
